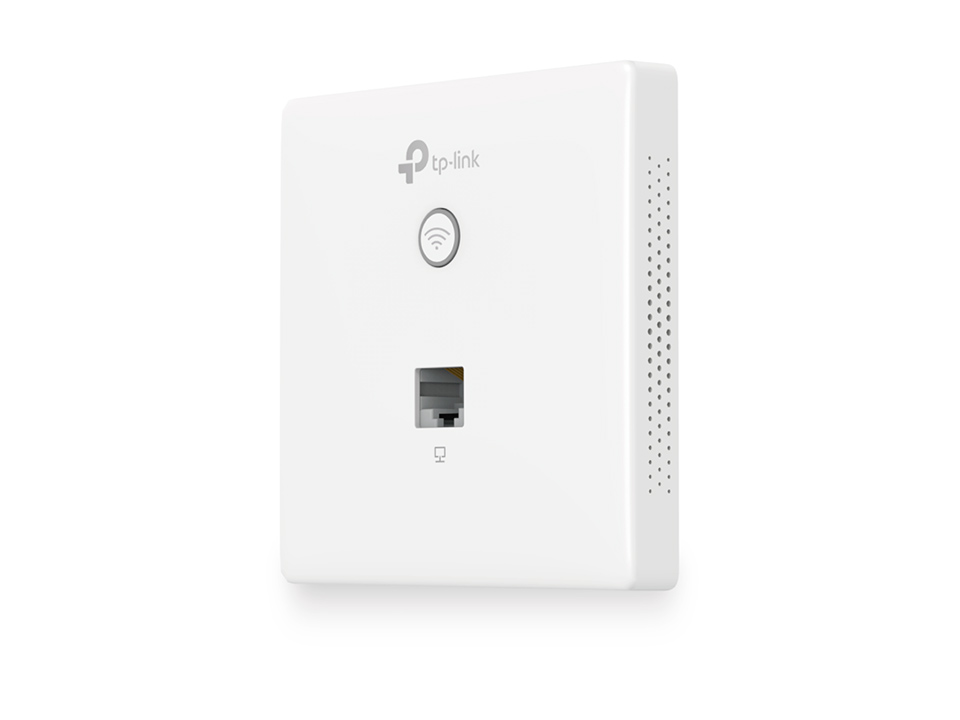

TP-Link EAP115-Wall v1.0, 300Mbps Wireless N Wall-Plate Access Point

23.31
(28.90 με ΦΠΑ)
034.0482
Σε Απόθεμα
+
Επικοινωνία Add to Wishlist Add to comparison list

Overview:

  • Easy-mount construction allows installation into any standard EU-type data wall-box
  • Compact, low-profile design fits discreetly with any existing interior style
  • Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
  • Support Power over Ethernet (802.3af) for convenient and affordable installation
  • Enterprise class Wi-Fi security helps to decrease network security threats
  • Captive portal provides one convenient method of authentication for Wi-Fi guests


Specifications:

HARDWARE FEATURES
Interface 10/100Mbps Ethernet (RJ-45) Port *2
Button LED/Wi-Fi Button、RESET
Power Supply PoE(IEEE 802.3af)
Power Consumption 2.8 W
Dimensions ( W x D x H ) 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)
Antenna Type Internal 2*1.8dBi Omni
Mounting Wall Plate Mounting
Physical Security Lock -
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b/a
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power CE:
<15dBm(2.4GHz)
Wireless Functions Multiple SSIDs(Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
OTHERS
Certification CE, RoHS
Package Contents 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


MPN :
EAP115-Wall v1.0
EAN :
6935364093457
